Soldier piles, also known as soldier beam walls, are a type of retaining wall system used in civil engineering and construction to provide temporary or permanent support for excavations. Soldier piles are typically steel H-sections, wide-flange beams, or other steel shapes that are installed at regular intervals along the excavation perimeter. The spaces between the soldier piles are then filled with lagging material, such as timber, concrete panels, or steel sheet piles, to create a continuous retaining structure.
Here are key features and uses of soldier piles:
Construction Process:

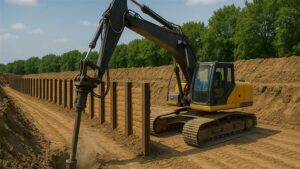

- Installation of Piles: The soldier piles are driven, drilled, or vibrated into the ground at predetermined intervals along the excavation perimeter.
- Lagging Installation: Lagging materials are installed horizontally between the soldier piles. Lagging provides lateral support to the soil and prevents it from collapsing into the excavation.
- Tiebacks (Optional): In some cases, horizontal elements called tiebacks or ground anchors may be installed to provide additional lateral support and enhance the stability of the soldier pile wall.
Key Components and Design:
- Lagging: Lagging materials, which fill the spaces between the soldier piles, contribute to the overall stability of the wall.
- Tiebacks (Optional): Tiebacks are used to anchor the soldier piles and provide additional resistance against lateral soil pressure.
Advantages and Uses:
- Versatility: Soldier pile walls are versatile and can be used in a variety of soil conditions, making them suitable for temporary and permanent applications.
- Rapid Installation: The installation of soldier piles is generally faster compared to other deep excavation support methods, making them a cost-effective solution.
- Adaptability: The system can be adapted to different site conditions and can accommodate changes in excavation depth or configuration.
- Minimized Vibration: Soldier pile walls can be a preferred choice in urban areas where minimizing ground vibration is important.
Applications:
- Deep Excavations: Soldier piles are commonly used to support deep excavations for basements, foundations, or other underground structures.
- Retaining Walls: They are employed as retaining walls for earth retention in areas with sloping terrain.
- Trench Shoring: Soldier piles can be used for shoring trenches during construction activities.
In summary, soldier piles are a reliable and versatile method for providing temporary or permanent support in deep excavations. Their use is widespread due to their adaptability to various soil conditions, relatively rapid installation, and effectiveness in providing stability during construction. The flexibility of soldier pile walls makes them a popular choice in both urban and rural construction projects.
