A soil nail wall is a type of earth retention system used in geotechnical engineering and construction to stabilize slopes and retain soil. It involves installing passive reinforcing elements, called soil nails, into the slope or excavation face. These soil nails are then anchored into the ground, creating a reinforced zone that improves the stability of the soil mass. Soil nail walls are commonly used in areas with steep slopes, landslides, or where traditional retaining walls may not be feasible or cost-effective.
Here are key features and uses of soil nail walls:
Construction Process:

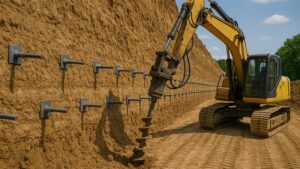

- Drilling: Holes are drilled into the slope or excavation face at a predetermined spacing and angle.
- Insertion of Soil Nails: Reinforcing elements, typically threaded steel bars or grouted reinforcing bars, are inserted into the drilled holes.
- Grouting (Optional): The drilled holes may be filled with grout to improve the bond between the soil and the reinforcing elements.
- Installation of Facing: A facing, such as shotcrete or other facing materials, may be applied to the slope face to prevent erosion and provide a finished appearance.
Key Components and Design:
- Soil Nails: The soil nails are the primary reinforcing elements. They are installed at a specific angle and spacing to optimize the stability of the slope or excavation.
- Facing Material: The facing material provides protection to the soil nail wall, prevents erosion, and gives the structure a finished appearance.
- Grout (Optional): Grout is used to improve the bond between the soil and the reinforcing elements, enhancing the stability of the soil nail wall.
Advantages and Uses:
- Flexibility: Soil nail walls are flexible and adaptable to various soil conditions and slope geometries.
- Rapid Installation: The construction process is generally faster compared to traditional retaining wall systems.
- Cost-Effective: Soil nail walls can be a cost-effective solution, especially in projects where traditional retaining walls may be impractical.
- Minimal Disruption: The construction process typically involves minimal disruption to the surrounding area, making it suitable for urban or environmentally sensitive locations.
Applications:
- Slope Stabilization: Soil nail walls are used to stabilize natural or man-made slopes to prevent landslides and erosion.
- Excavation Support: They are employed in excavations to provide temporary or permanent support to prevent slope failure.
- Retaining Walls: Soil nail walls can act as retaining structures in situations where conventional retaining walls may not be feasible.
In summary, soil nail walls are a geotechnical solution for stabilizing slopes and retaining soil in a flexible and cost-effective manner. Their adaptability to various site conditions and relatively rapid installation make them a popular choice in geotechnical engineering, particularly in projects where slope stability is a critical consideration.
