Rock and soil anchors are structural elements used in civil engineering to provide stability and support to various structures, especially those located on slopes or in areas with challenging soil or rock conditions. These anchors are employed to resist forces such as tension, compression, or lateral loads and prevent movement or failure of structures.
Rock Anchors:
- Purpose: Rock anchors are used in situations where a structure needs support in rock formations. They are commonly employed in slope stabilization, rock slope protection, tunnelling, and foundation support.
- Installation: Typically, rock anchors are installed by drilling into the rock and then grouting the borehole to enhance the bond between the anchor and the surrounding rock. The anchor is then tensioned to provide the necessary support.
- Components: A typical rock anchor consists of a steel tendon or cable, an anchor head or plate that transfers the load to the rock, and grout that fills the drilled hole to enhance the bond.
Soil Anchors:
- Purpose: Soil anchors, also known as ground anchors or earth anchors, are used to provide stability to structures in soil conditions where conventional foundations may be insufficient. They are often used in retaining walls, slope stabilization, and deep excavations.
- Installation: Soil anchors are installed by drilling into the soil and placing a tendon or cable within the drilled hole. Grouting may also be used to enhance the bond between the anchor and the soil. The anchor is then tensioned to provide the necessary support.
- Components: Similar to rock anchors, soil anchors consist of a tendon or cable, an anchor head or plate to transfer loads, and grout to improve the bond with the surrounding soil.
Application of Soil/Rock Anchors

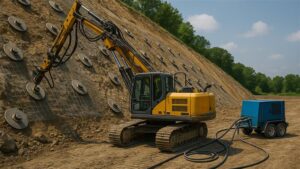

- Stabilization of Unprotected Slopes or manmade cuts
- Securing Structures below Groundwater level against Buoyancy
- Inclined rock/rod anchor for slope stabilisation
- Inclined anchor for basement excavation
- Vertical anchor for uplift pressure in foundation
- Increase the stability of Hydro Electric Structures and Dams
- Mining and Refinery
Benefits of Soil/Rock Anchors
- Provides a high load capacity even in poor ground conditions,
- Does not involve large area excavation
- attractive option when space is limited
- low impact on the environment
- Quick Installation
Both rock and soil anchors play a crucial role in ensuring the stability and safety of civil engineering structures, particularly in challenging geological conditions. The selection of the appropriate type of anchor depends on factors such as the type of soil or rock, the magnitude of loads, and the specific requirements of the project.
